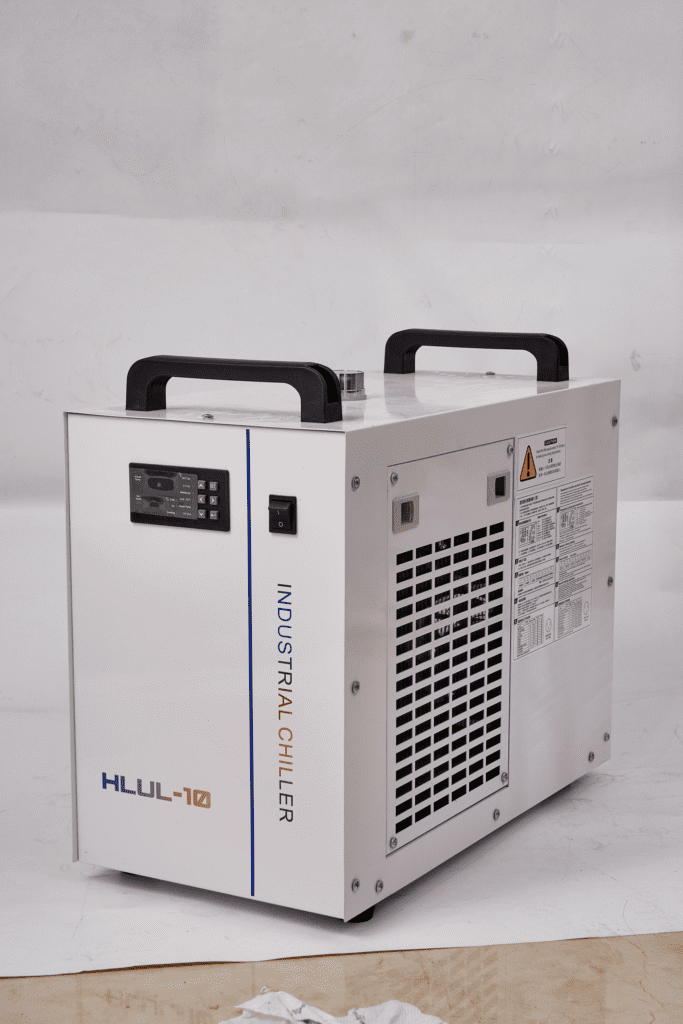

HLUL-10 Ultraviolet Laser Cooler

The HLUL-10 UV laser chiller provides robust and reliable cooling performance for lasers, CNC machine tools, and other industrial equipment. Designed for high performance and durability, this chiller features advanced temperature control, easy operation, and a robust construction, ensuring consistently high cooling efficiency. It is ideal for factories, workshops, and manufacturing environments.

Feature,Specification Details

Model,HLUL-10

Voltage,AC 1P 220-240V / AC 1P 110V

Frequency,50/60Hz / 60Hz

Current,0.4-2.7A / 0.4-5.18A

Total Power,0.45/0.47KW / 0.49KW

Compressor Power,0.37/0.39KW (0.5/0.53HP) / 0.38KW (0.51HP)

Nominal Cooling Capacity,2995Btu/h / 0.9KW / 755Kcal/h

Pump Power,0.05KW

Max. Pump Head,15M

Max. Flow Rate,16L/min

Refrigerant,R134a

Temp. Precision,±0.1℃

Throttling Device,Capillary (毛细管)

Inlet/Outlet,φ8 / φ10 / φ12 Quick Connector

Tank Capacity,6L

Machine Dimensions,560 × 285 × 470mm (L × W × H)

Packing Dimensions,660 × 390 × 520mm (L × W × H)

Net Weight,23Kg

Gross Weight,26Kg

Safety Protection,”Flow protection, water temp high/low alarm, compressor overload protection, room temp high alarm”
