CW-5300 Industrial Water Chiller for High-Power CO2 Laser and CNC Spindle Cooling

CE
RoHS
REACH
ISO 9001
inquiry

The CW-5300 Industrial Chiller is a professional-grade thermal management solution engineered to address the critical heat dissipation needs of high-precision industrial equipment. Fluctuating temperatures can lead to decreased laser beam quality and mechanical wear in spindle applications; the CW-5300 solves these pain points by offering a stable cooling capacity up to 2.1kW and high-precision temperature control of ±0.3°C. Built to adhere to rigorous ISO Standard manufacturing protocols, this unit ensures long-term operational stability for your production line. Whether integrated into a complex CNC cell or a standalone laser cutting station, the CW-5300 available at Chiller Industrial guarantees the thermal equilibrium necessary for peak performance.

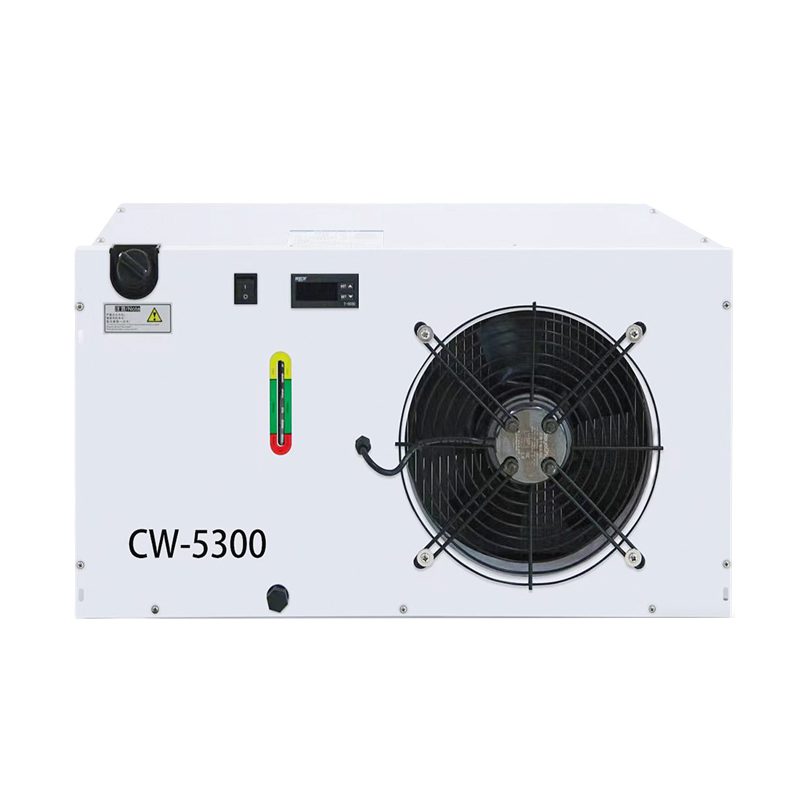

CW-5300 Industrial Chiller Main View

CW-5300 Industrial Chiller

±0.3°C Precision
2.1kW Capacity
Laser & CNC

Important Application Tip:

Ensure the water tank is filled with distilled or purified water before power-on to protect the high-pressure pump and laser cavity from scale buildup.

Product Introduction

The CW-5300 Series is a high-performance active cooling water chiller. Its robust refrigeration system is designed for demanding industrial environments, providing consistent temperatures regardless of ambient conditions. It features multiple alarm functions and a smart control panel that allows for both constant and intelligent temperature modes.

CW-5300 Intelligent Controller

Intelligent Temperature Control

Equipped with a T-506 controller, the CW-5300 offers precise temperature regulation. It automatically adjusts the water temperature based on the environment, reducing the need for manual intervention and protecting your equipment from condensation.

CW-5300 Portability

Compact & Portable Design

Despite its powerful 2.1kW cooling capacity, the unit maintains a small footprint. Built-in sturdy handles allow for easy movement between workstations, making it a flexible solution for growing workshops with changing layouts.

Technical Data (Product Parameters)

Specifications AC 220-240V (50/60Hz) AC 1P 110V (60Hz)
Temperature Stability ±0.3°C
Max. Cooling Capacity 1.75kW (5970Btu/h) 2.1kW (7165Btu/h)
Pump Pressure / Max. Head 88W / 25M
Max. Flow 25L/min
Refrigerant R410a/R407C
Tank Capacity 6L
Safety Protection Flow protection, High/Low temp alarms, Overload protection

Ventilation Distance & Installation

To ensure optimal heat dissipation, please maintain the following clearances:

  • Air Inlet: At least 30cm clearance from obstacles.
  • Air Outlet: At least 50cm clearance from the back of the unit.

Frequently Asked Questions (FAQ)

Q1: Why is my CW-5300 chiller beeping?
A1: This is usually an alarm triggered by water flow issues or temperature limits. Check the water level and ensure there are no kinks in the hoses.

Q2: How often should I change the cooling water?
A2: For industrial environments, we recommend changing the water every 3 months to prevent clogging and bio-growth.
