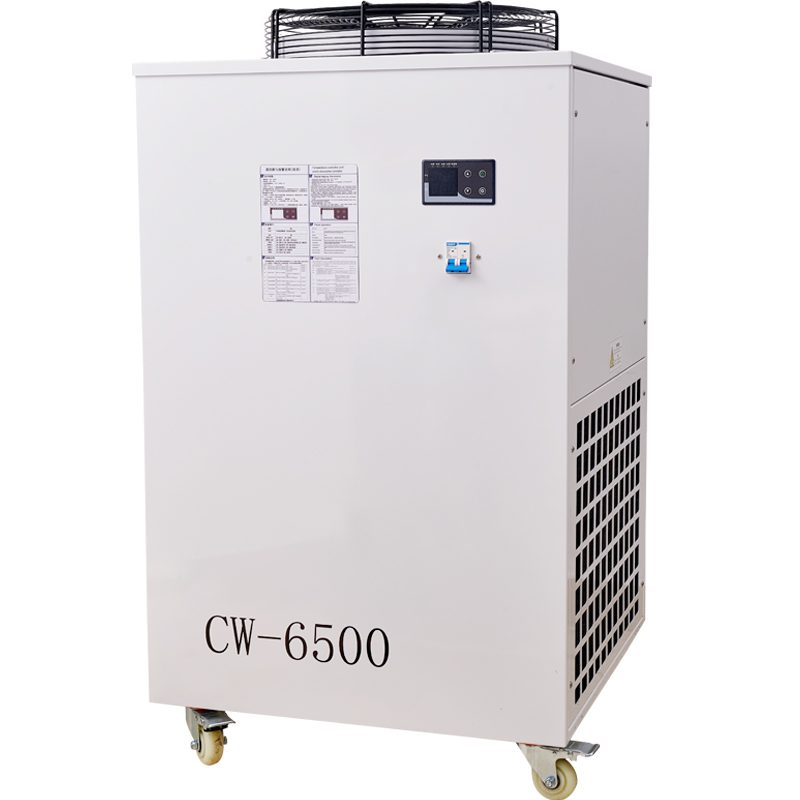

CW-6500 CO2 Laser Chiller
Power: 12.2kW
Field: Laser & CNC
Product Introduction
The CW-6500 series is a powerhouse in industrial cooling, specifically designed for high-heat environments. Featuring a durable metal casing and an intuitive intelligent control panel, it offers seamless integration into your production line. With enhanced mobility via caster wheels, it is the perfect solution for busy workspaces requiring flexible yet powerful cooling.
Superior Heat Dissipation
Equipped with a massive 4290W compressor, the CW-6500 maintains consistent water temperatures even under heavy load, ensuring your laser beam remains stable and precise throughout long production cycles.
Intelligent Protection Systems
Built-in alarm functions protect your valuable equipment. From water flow detection to high/low temperature alerts, the CW-6500 acts as a safeguard for your industrial investments, adhering to ISO safety standards.
Technical Parameters
| Specifications | Data Details |
|---|---|
| Model | CW-6500 |
| Power Supply | AC 3P 380V / 50Hz |
| Cooling Capacity | 4.8HP / 12.2KW ±5% |
| Compressor Power | 4290W |
| Tank Capacity | 24 Liters |
| Dimensions | 680 × 680 × 1200 mm |
Product Working Principle
The chiller uses a vapor-compression refrigeration cycle. Water is circulated from the 24L tank to the heat source (laser/spindle), absorbs heat, and returns to the evaporator where the R410a refrigerant removes the energy. This heat is then exhausted through high-performance fans.
Ventilation Distance
To maintain peak efficiency, place the CW-6500 at least 50cm away from walls or obstructions on all sides to allow for proper airflow through the intake grilles.
Frequently Asked Questions (FAQ)
Q1: Can CW-6500 handle dual laser tubes?A1: Yes, with its 12.2kW capacity, it can efficiently cool two high-power CO2 laser tubes simultaneously. Check our homepage for more multi-connection accessories.
Q2: What refrigerant does it use?A2: The standard model uses eco-friendly R410a or R22 depending on regional requirements.
