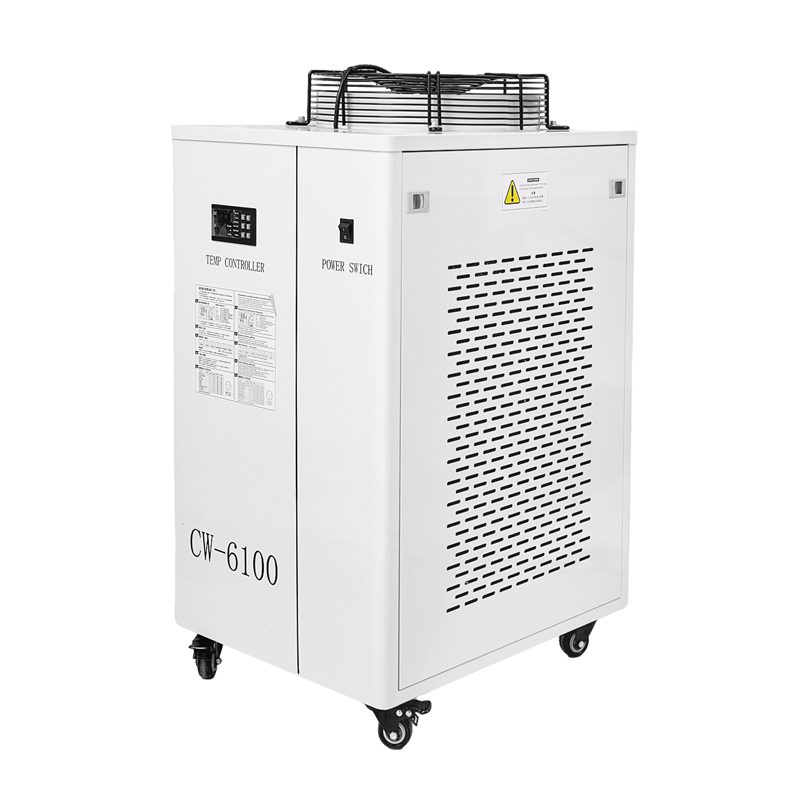

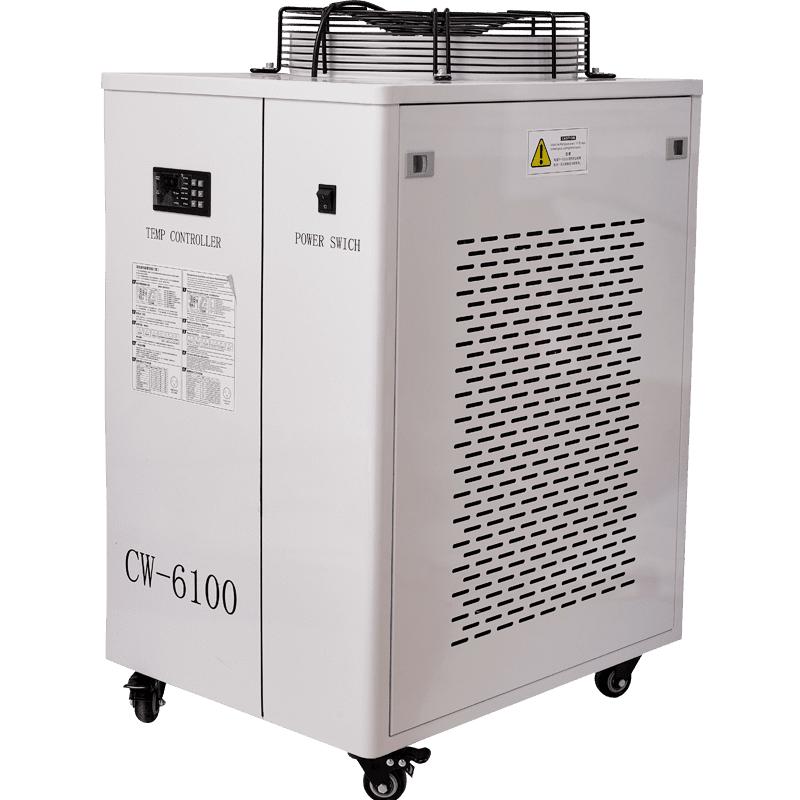

CW-6100 Industrial Chiller
Power: 3.7KW
Field: Laser/CNC/Industrial
Ensure the chiller is placed in a well-ventilated environment with ambient temperatures below 45°C to maximize cooling efficiency and lifespan.
Product Introduction
The CW-6100 series is a high-precision compression refrigeration industrial water chiller, featuring intelligent temperature control, completed configuration, and advanced protection systems. It is widely used in cooling high-speed spindles, lasers, and other professional industrial equipment.
Product Parameters
| Model | CW-6100 | |
|---|---|---|
| Voltage | AC 220-240V (50Hz) | AC 220-240V (60Hz) |
| Cooling Capacity | 3.7KW ±5% | 3.6KW ±5% |
| Temperature Stability | ±0.5℃ | |
| Compressor Power | 1.5HP / 1325W | |
| Refrigerant | R410a | |
| Max. Pump Flow | 75L/min | |
| Tank Capacity | 18L | |
Product Features
Dual Temperature Control Modes
Equipped with intelligent and constant temperature modes. The intelligent mode allows the water temperature to adjust automatically based on the ambient temperature, providing a hands-free solution for seasonal changes.
Comprehensive Safety Alarms
The CW-6100 integrates multiple alarm functions, including water flow protection, high/low temperature alarms, and compressor overload protection, ensuring the safety of both the chiller and your expensive industrial equipment.
Working Principle & Details
The refrigeration cycle of the CW-6100 involves the compression of R410a refrigerant, which absorbs heat from the circulating water. This cooled water is then pumped to the target equipment to maintain a stable thermal state. All manufacturing processes follow ISO Quality Standards to ensure durability.
Ventilation Distance: To ensure heat dissipation, keep at least 1.5m distance from the air outlet (back) and 1m from the air inlets (sides) to obstacles.
Frequently Asked Questions
For more technical support, please visit Chiller Industrial.
