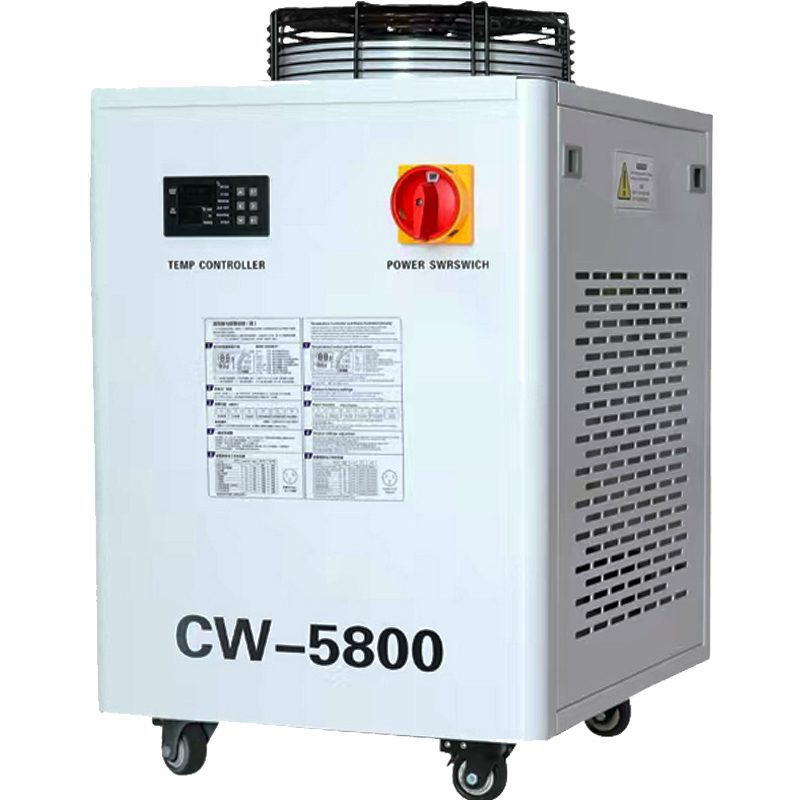

CW-5800 High-Capacity Industrial Water Chiller for High-Power CO2 Laser and CNC Spindle Cooling

CE
RoHS
REACH
ISO 9001

The CW-5800 Industrial Chiller is a high-performance cooling solution engineered to tackle the heat dissipation challenges in demanding industrial environments. With a cooling capacity of up to 2.6kW, this unit effectively solves the problem of thermal instability in high-power CO2 laser cutters and heavy-duty CNC machinery. By maintaining a constant operating temperature, it prevents component degradation and ensures consistent processing accuracy. Built to ISO Standard quality benchmarks, the CW-5800 integrates smart temperature control logic to optimize energy consumption. Whether you are managing heat in a manufacturing plant or a precision laboratory, Chiller Industrial provides the reliability needed for 24/7 continuous operation.

CW-5800 Industrial Chiller

Parameters 220-240V / 50Hz 220-240V / 60Hz 110V / 60Hz
Operating Current 0.4 – 8.6A 0.4 – 9.2A 0.4 – 17.2A
Compressor Power 726W (0.92HP) 905W (0.92HP) 810W (1HP)
Nominal Cooling 2.4KW ±5% 2.6KW ±5% 2.5KW ±5%
Pump Performance Power: 88W | Max Head: 25M | Max Flow: 25L/min
Refrigerant / Reducer R22 / R410a | Capillary
Inlet and Outlet OD 10mm Barbed Connector
Tank Capacity 6 Liters
Dimensions (L×W×H) 500 × 430 × 700 mm
Net Weight (N.W.) 45 Kg
