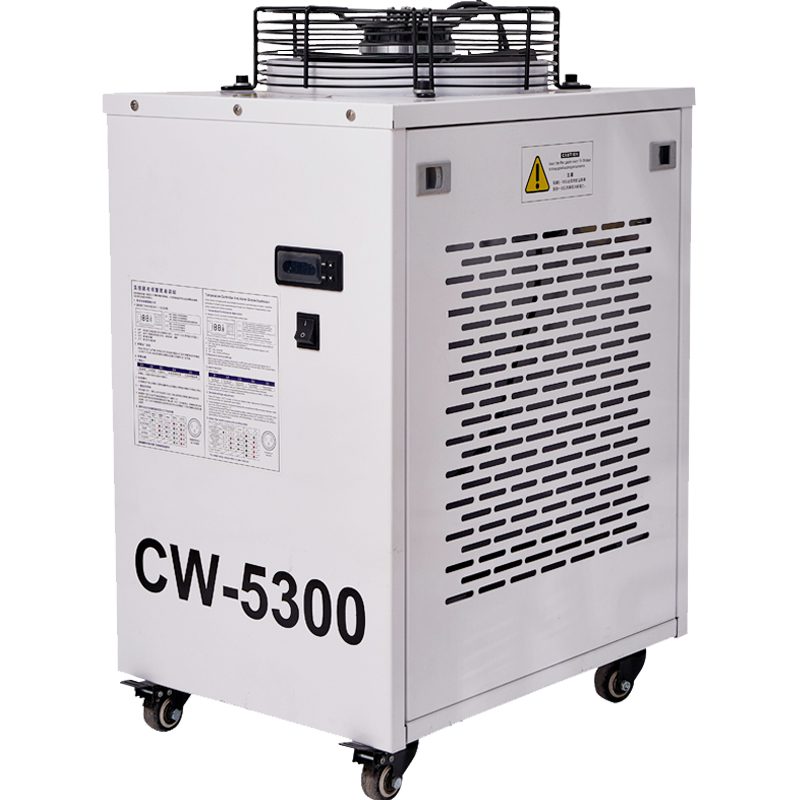

CW-5300 Industrial Water Chiller for High-Precision CNC Spindles and CO2 Laser Cutting Systems

CE
RoHS
REACH
ISO 9001

In demanding industrial environments, thermal instability is the leading cause of equipment failure and precision loss. The CW-5300 Industrial Water Chiller is engineered to resolve these critical cooling pain points by providing a stable 2.1KW cooling capacity. Designed for high-load CNC machinery and delicate laser tubes, this unit maintains a remarkable temperature precision of ±0.3℃. By integrating the Chiller Industrial Chiller, operators can ensure consistent beam quality and prevent spindle thermal expansion. All components are manufactured according to strict ISO Standard protocols, ensuring long-term reliability and global compliance for your factory’s cooling infrastructure.

CW-5300 Industrial Chiller

Model CW-5300
Voltage Options AC 220-240V / 110V (50Hz)
Cooling Capacity 2.1KW / 7165Btu/h / 2210Kcal/h
Temperature Precision ±0.3℃
Total / Compressor Power 0.85KW / 0.7KW
Operating Current 0.5 – 4.8A
Refrigerant / Throttle R410a / R407C | Capillary
Pump Performance Power: 0.088KW | Max Head: 25M | Max Flow: 25L/min
Inlet / Outlet φ10 Brass Connector (Default) / Customizable
Tank Capacity 6 Liters
Dimensions (L×W×H) 540 × 350 × 660 mm
Net Weight 30 Kg
