CW-5000 Industrial Water Chiller for CO2 Laser Engraving and CNC Spindle Cooling

CE
RoHS
REACH
ISO 9001
inquiry

  • The CW-5000 Industrial Chiller is a professional cooling solution engineered to solve critical overheating issues in high-precision industrial processes. By maintaining a temperature stability of ±0.3°C, it protects sensitive components like CO2 laser tubes and high-speed spindles from thermal deformation. This system ensures consistent output quality while extending the lifespan of your equipment. As a leading provider at Chiller Industrial, we ensure our cooling systems meet rigorous global quality benchmarks, aligning with ISO Standard requirements for industrial reliability and safety. Whether for laboratory or factory environments, the CW-5000 offers unmatched durability and efficiency.

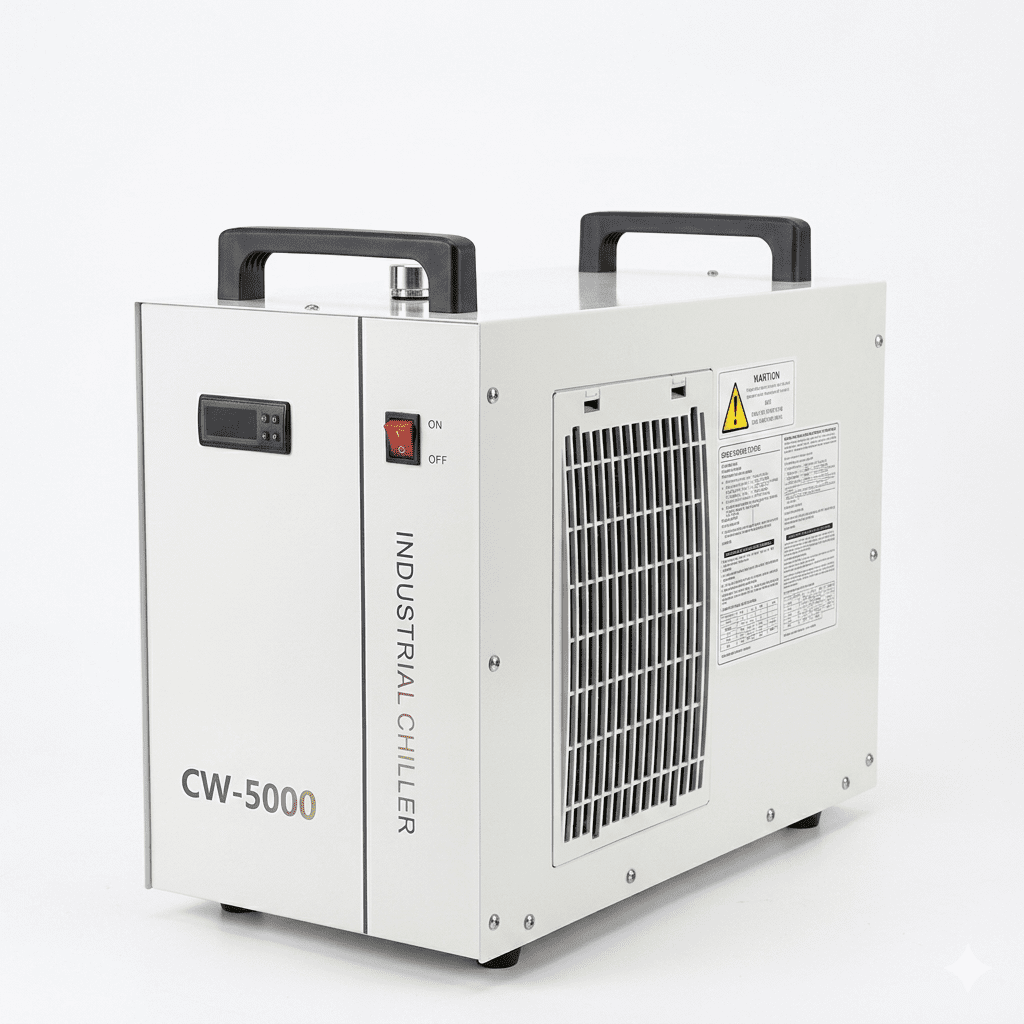

CW-5000 Industrial Chiller

CW-5000 Industrial Water Chiller

±0.3°C Stability
0.9kW Cooling
CO2 Laser / CNC
Important Application Tip: Always ensure the water tank is filled with distilled or purified water before powering on the compressor to prevent pump damage and scale buildup.

Product Introduction

The CW-5000 Industrial Chiller is designed for reliable and powerful cooling of laser and industrial equipment. Featuring advanced temperature control, easy operation, and a compact design, it’s perfect for maintaining optimal performance in demanding environments. Sturdy handles provide easy portability, while the durable construction ensures long-lasting service.

Product Features

Intelligent Control

Intelligent Dual Temperature Modes

Equipped with an intelligent controller that offers constant temperature mode and smart adjustment mode. In smart mode, the water temperature adjusts automatically based on the ambient temperature, providing hands-free operation for complex industrial environments.

Safety Protection

Comprehensive Safety Alarms

The CW-5000 includes multiple alarm protection functions: water flow protection, high/low temperature alarms, and compressor delay/overload protection. These safeguards ensure the chiller and your expensive laser source remain safe under all conditions.

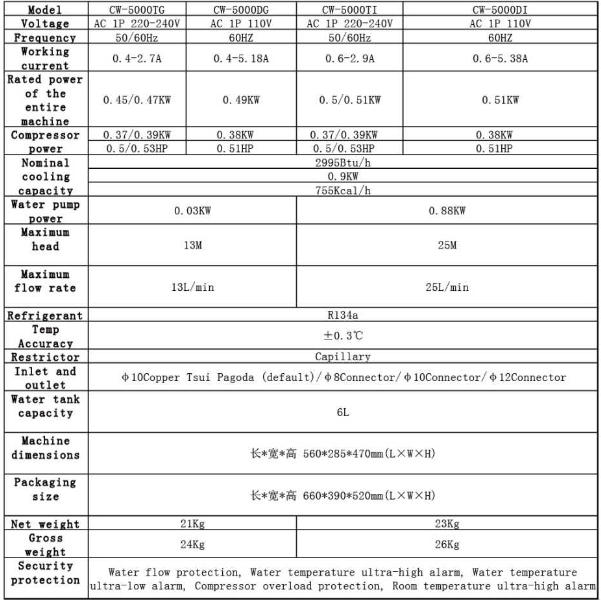

Technical Parameters

Model CW-5000TG CW-5000DG CW-5000TI CW-5000DI
Voltage AC 1P 220-240V AC 1P 110V AC 1P 220-240V AC 1P 110V
Cooling Capacity 0.9KW / 2995Btu/h / 755Kcal/h
Temperature Stability ±0.3°C
Tank Capacity 6L
Pump Max. Head 13M 25M

Optional Items & Product Details

  • Water Filter: Optional inline filters to ensure pure water circulation.
  • Dual Voltage: Available in 110V and 220V configurations to suit regional power grids.
  • Portability: Integrated top handles for easy positioning in lab or workshop.

Product Working Principle

The CW-5000 utilizes a vapor-compression refrigeration cycle. The refrigerant circulates through the evaporator, absorbing heat from the water, which is then pumped to the external equipment. The compressor then compresses the refrigerant gas, and the heat is dissipated through the condenser and fan system.

Ventilation Distance

To maintain peak efficiency, keep a distance of at least 50cm between the chiller’s air outlet and obstacles, and 30cm for the side air inlets.

Frequently Asked Questions (FAQ)

Q: Can the CW-5000 be used for a 150W CO2 laser?A: Yes, the CW-5000 is perfectly suited for CO2 laser tubes up to 80W-120W. For 150W, we recommend checking heat load or upgrading to CW-5200.

Q: Does this model comply with international safety standards?A: Yes, our units are built to meet high manufacturing quality standards, consistent with the ISO Standard 72393 for industrial equipment.

Q: Where can I find more technical support?A: You can visit our main portal at Chiller Industrial for manuals and support.
